novo LeWL WindLogger

£380.00

This product will be despatched within 10-15 working days

---- QUESTIONS AND ANSWERS ----

Categoria: anemometer, datalogger, LeWL wind logge, LeWL windlogger, Wind, Wind measurement

O novo LeWL WindLogger é fabricado desde 2008. Já vendemos milhares destes pequenos dispositivos de registo de dados de vento em todo o mundo e têm uma excelente reputação devido à sua estabilidade, precisão e resistência.

O novo WindLogger foi remodelado com grandes melhorias, graças à pequena e entusiasta comunidade ligada ao vento. Ouvimos o feedback desta comunidade e fizemos várias melhorias:

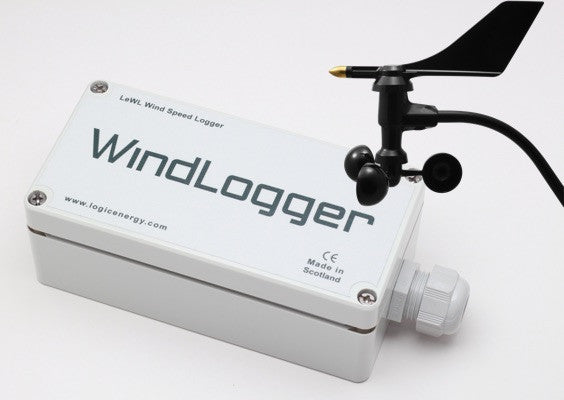

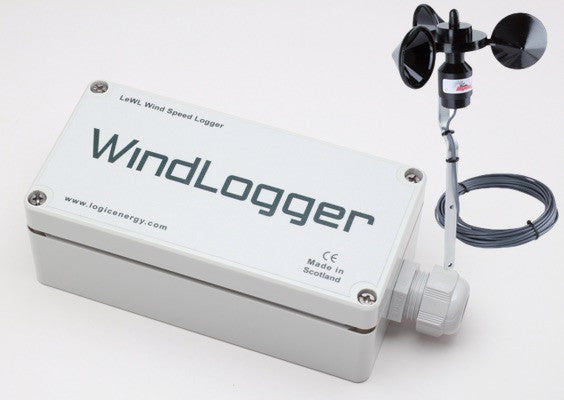

Instalação mais fácil de sempre, basta ligar o anemómetro Davis na ligação interna 6P4C. Também pode usar qualquer outro tipo de anemómetro. Pode liga-lo diretamente ao bloco de ligação de entrada do sensor interno.
Sistema de deteção automática de anemómetro. O novo WindLogger avisa caso haja um anemómetro ligado a funcionar antes deixar o local.
Opção para sonda de temperatura externa

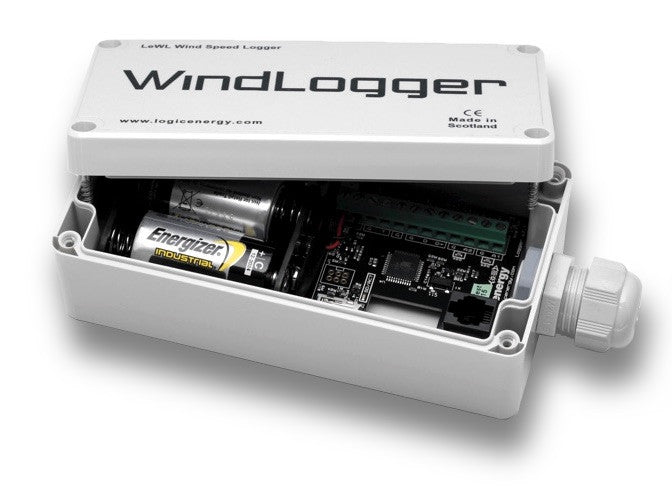

Monitor de bateria integrado
Excelente vida útil de bateria de até 1 ano a 1 minuto do intervalo de registo

Especificações
- Regista velocidades do vento de até 2 anemómetros simultaneamente - Velocidade média do vento, rajadas de velocidade do vento e desvio-padrão (turbulência) e direção do vento
- Entrada para sonda externa de temperatura
- Até 1 ano de vida útil da bateria ao gravar 1 minuto de dados ou até 3 anos vida útil da bateria gravando em intervalos de 10 minutos. (10 segundos disponíveis para teste)
- Registo de dados com gravação de data para cartão microSD em formato CSV padrão para importação para Excel ou para software de análise de vento. Inclui todos os valores dos sensores, para além do estado da bateria.

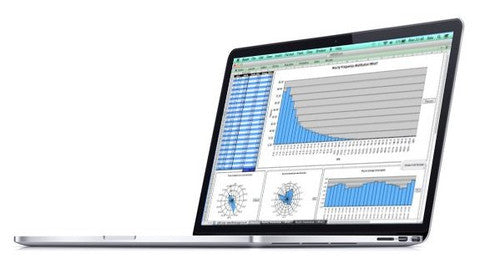

- Ferramentas de análise simples incluídas. (Modelo de Excel para manipulação ou aplicação em Java)
- Totalmente à prova de intempéries, classificação IP65
Armazenamento de memória em cartão SD
- Ficheiros no formato ASCII CSV padrão, arquivado em ficheiros mensais
- Média de registos, desvio padrão e valores máximos
- Os dados gravados com data e hora
- Cartão flash microSD FAT32

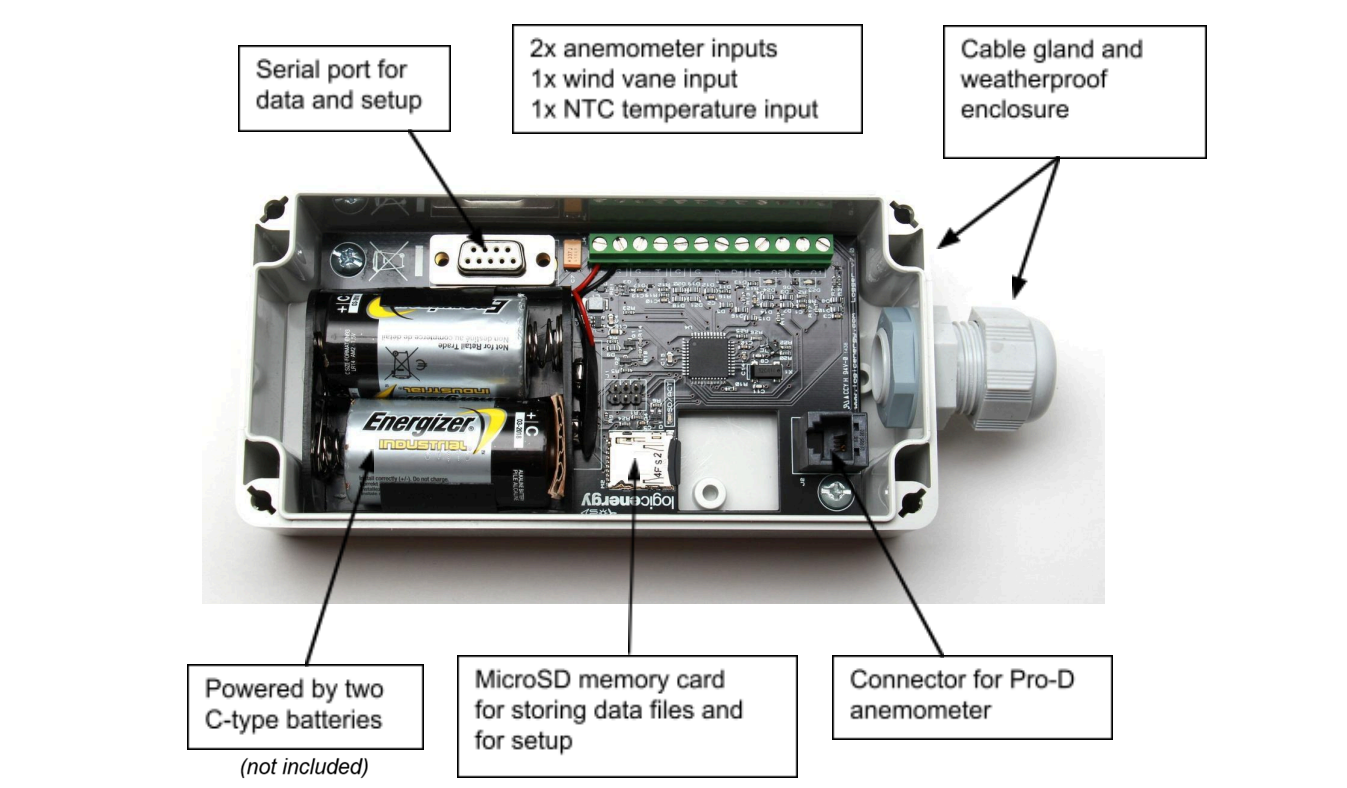

Quatro entradas de sensores

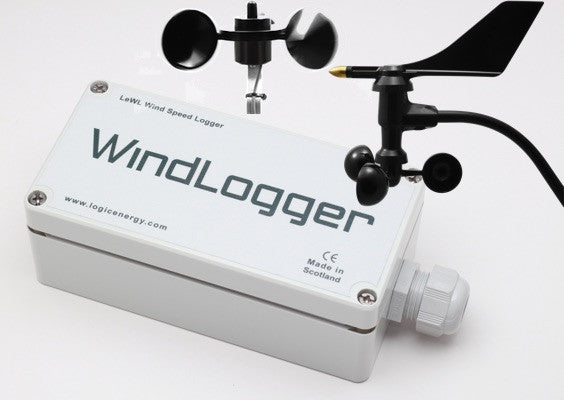

- Registe dois anemómetros de uma vez (2 entradas digitais)
-- Suporta interruptor de contato seco (livre de tensão), interruptor de efeito Hall, coletor aberto ou 3V sinal de nível de lógico de entrada da Velocidade do vento
- Sensor potenciómetro de direção do tipo de vento, 1k -. 20k ohms.
- Suporte para sensor de temperatura externo
Porta serial de interface com o PC
- RS232 compatível para leitura de valores enquanto regista dados
- Menu de configuração atrevés através de porta serial ou através de cartão SD
- 4800bps
- Configuração personalizada do sensor via RS232

Informação Mecânica
- Temperatura de Operação -40*C a + 70*C ( Consulte-nos primeiro para aplicações meteorológicas extremas )
- IP65 selado em invólucro com glândula para os fios do sensor
- Dimensões: 160x80x55mm
- Peso: 450gm incluindo baterias

Download do manual e guia rápido aqui ou veja P.M.F. para o WindLogger e vídeos

From Waste To Wind

We purchased Lewl Windlogger for our projects after technical support professionally explained what the error margin of the standard anemometer is compared to a calibrated one. WE are happy with the product and want to order more units.

Atacama Desert

Studying the aerosol/particulate material deposition for Atacama Desert, we set a west-east transect of dust traps starting close to the Pacific Ocean until the Andes Cordillera. To study the atmospheric deposition and its temporal-spatial dynamics we purchased 3 wind trackers close to the dust traps so we analyse the wind speed and direction. Excellent customer support with our first international purchase out of Chile.

Monitoring wind in Switzerland

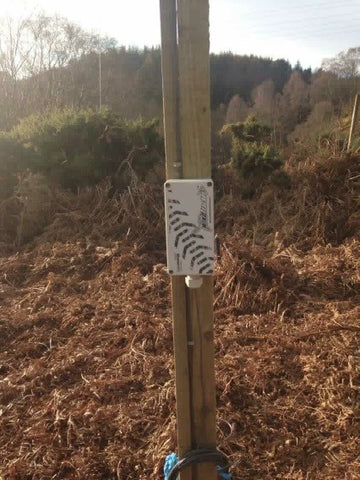

The wind logger is installed near a cow barn, where I rented the roof, to put a 152 kWp PV-plant. Thus, it would be easy to connect a future wind generator with the electricity grid. To see if the wind is good enough to put a small wind turbine generator system in this area. I am loggin the wind for one year started in February 2023. Then I’ll decide to ask the local authority for permission. I installed the wind logger on a 12-meter pole. Looks like the wind speed in this area of Switzerland is not very promising. Although during winter wind is normally stronger, hence having windlogger is great decision.

thanks a lot for your commitment!

The set up of the wind logger was easy and worked from beginning as promised. My problem to import the CSV file in Excel, was quickly solved by the Windlogger team.

PERFECT customer service

When was needed, I have received all instructions regarding reading the data. Thank you very much for your efforts and the PERFECT customer service!

1 2

Customer Questions

Ask Question

Q: Can this wind logger measure temperature too?

A: Yes, it comes pre-configured to use this temperature probe: https://www.windlogger.eu/collections/sensors/products/temperature-thermistor We also recommend using a solar radiation shield if you intend to use the temperature probe under direct Sun light: https://www.windlogger.eu/products/radiation-shield-for-sensors

Q: Hello,I am interested in the LeWL setup for ecology research regarding wind-use in birds. I am wondering what the sensitivity is of the anemometer - for both high- and low- wind-speeds? Thank you,Kris

A: There're many many sensor options, it is probably best to contact us with more details about your requirements. In the meantime, have a look at these: https://www.windlogger.com/collections/sensors

Q: Hi guys,Do you have a MAC OS setup program for the LEWL by any chance?

A: Unfortunately not, however the setup is done using a simple text file that can be edited manually. When the new file is found by the data logger, then it loads its configuration. This process is described in the wind logger manual.

Q: Hi,How many days to reach buyer in Manila, Philippines. İ'd like to buy wind logger plus anemometer and wind vane.Thanks. Hope you response.

A: Hello, we usually dispatch within 2 working days. You should expect to have your items with you within a week. Feel free to contact us directly if you need more details.

Q: Is the sensor compatible with Anemometer Young?

A: Hello, it depends which model. You would need to use one with a pulse output.

Q: Hello,The wind direction angle recorded by these devices represents the direction the wind is blowing FROM? Does a 90º direction mean wind blows westward? Thank you, I purchased 4 anemometers of yours and they are just fine!

A: Yes, that is correct. The wind vane points where the wind is coming from, in the case of recording a 90º, the wind would be comfing from the East. 90º is East, and 270º would be West.

Q: I am interested in getting a new LeWL WindLogger, Could you tell me if the equipment has calibration report and what class it is?

A: Calibration certificates are done for the anemoeters (wind sensors). In this case, depending on the size of your project you may need a 1st Class MEASNET anemometer. Feel free to contact us with details, we will be happy to suggest the best option.
